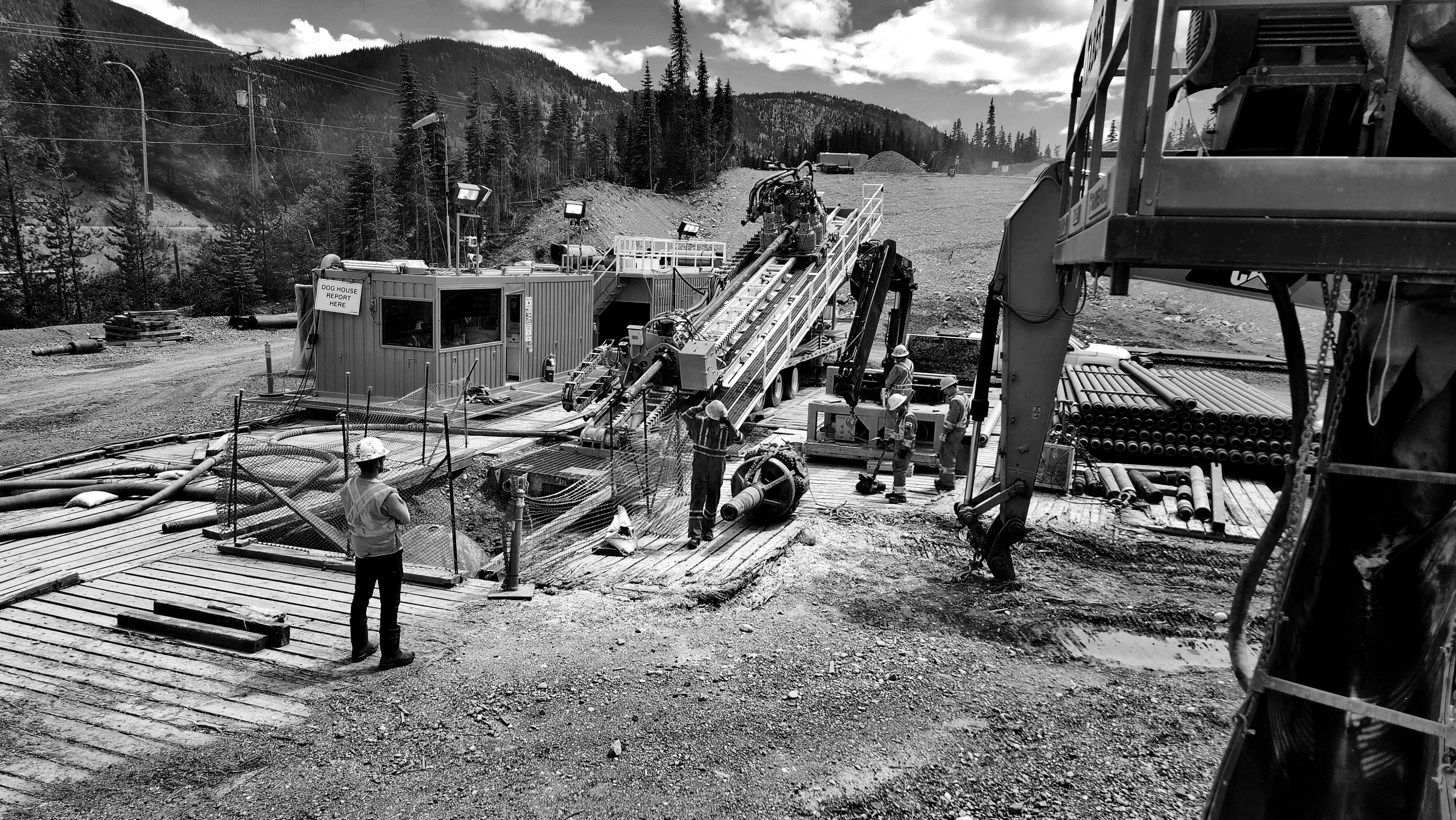

What is Horizontal Directional Drilling?
Horizontal Directional Drilling (HDD) is a trenchless method used to install pipelines, conduits, and cables beneath surface obstacles such as rivers, roads, railways, and sensitive areas without open-cut excavation. It minimizes surface disturbance and is often preferred where trenching is impractical or not allowed.
Every HDD bore has three phases: a pilot bore creates a small guided hole, pre-reaming enlarges it in stages, and product pullback installs the pipeline through the finished bore. HDD projects range from small utility crossings to large bores over 3,000 ft long and 60 inches in diameter.
Why Drilling Fluids Are Critical to HDD
Drilling fluid, commonly called mud, is the most important variable in any HDD bore. Without a properly designed fluid system, even the best rig and crew cannot complete a crossing reliably. Drilling fluids perform several simultaneous functions:
- Cuttings transport: Carries cuttings from the bit to the entry pit.
- Borehole stability: Builds filter cake to support the borehole wall.
- Lubrication: Reduces friction during drilling and pullback.
- Bit and tool cooling: Dissipates heat from the bit and motor.
- Formation control: Helps prevent clay swelling and bit balling.
- Inadvertent return prevention: Reduces hydrofracture risk through proper fluid properties.
How NorthStar Supports Your HDD Project
NorthStar designs fluid programs around the geology, rig, and bore path of each project, not a one-size-fits-all recipe. We help contractors during bidding with volume estimates, product quantities, and mix ratios to support accurate pricing and timely delivery.

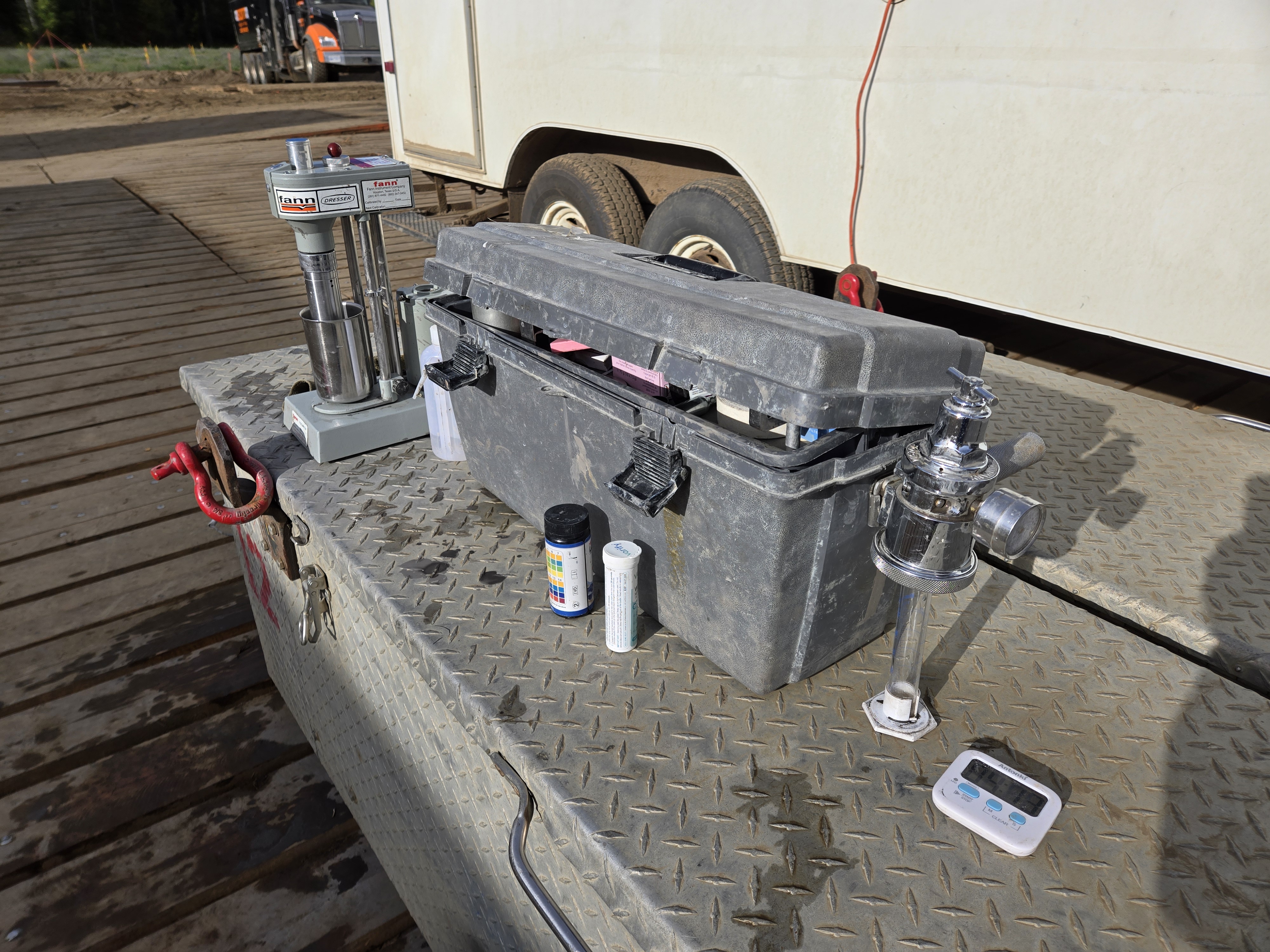

Our support continues in the field. Staff are available on-site to test fluids, adjust programs, and troubleshoot changing conditions such as cobbles, reactive clays, and water-bearing sands.
We support HDD projects ranging from utility bores and waterlines to large-diameter crossings, fiber installs, and environmental projects.
Key Products
Commonly used additives for HDD fluid systems.
Engineered Fluid Programs
Each HDD bore presents unique geological challenges. NorthStar's EDFPs give contractors accurate volume estimates and product amounts before the project starts — covering everything from pilot bore to final reaming pass and pullback. Mix ratios, recommended advancement rates, and contingency plans for problem formations are all included, reducing downtime and surprises in the field.
